Pairing Instructions

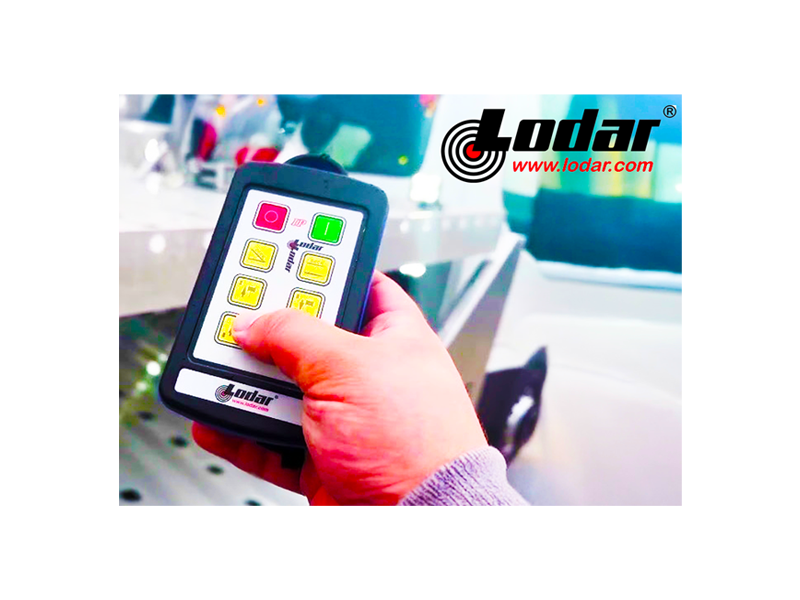

Standard Wide Band Transmitter to Receiver
Follow the procedure below to pair a Standard Wide Band Transmitter (Remote) with a Wide Band Receiver.
This process enables a 20 second pairing period.
1 - Disconnect the +ve power to the Receiver.
2 - Press the RED STOP button on the Transmitter.
3 - Reconnect the +ve power to the Receiver.
(This begins the 20 second pairing period - If viewing the Receiver, the Red fault LED will be flashing.)
4 - Press and HOLD the GREEN ON button AND the FUNCTION 1 button for 5 seconds during the 20 second pairing period.
5 - First release the FUNCTION 1 button, then release the GREEN ON button.
(If viewing the Receiver, when the Transmitter is paired to the Receiver, the Receivers Red fault LED will illuminate solid.)
6 - Press the RED STOP button on the Transmitter to turn it OFF.
7 - Press the GREEN ON button on the Transmitter to turn it ON. This completes the pairing.
8 - Test the pairing by pressing the GREEN ON button to turn the Transmitter ON then press each of the function buttons.
